The LIS331DLM is an ultra low-power high performance three axes linear accelerometer belonging to the "nano" family, with digital I²C/SPI serial interface standard output.

The device features ultra low-power operational modes that allow advanced power saving and smart sleep to wake-up functions.

The LIS331DLM has dynamically user selectable full scales of ±2g/±4g/±8g and it is capable of measuring accelerations with output data rates from 0.5 Hz to 400 Hz.

The self-test capability allows the user to check the functioning of the sensor in the final application.

The device may be configured to generate interrupt signal by inertial wake-up/free-fall events as well as by the position of the device itself.

Thresholds and timing of interrupt generators are programmable by the end user on the fly.

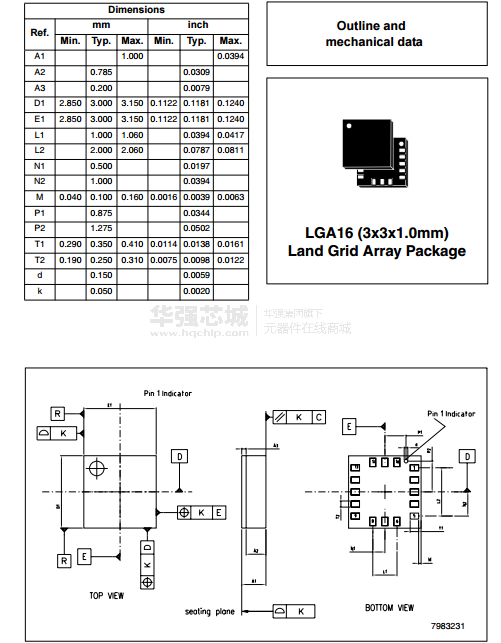

The LIS331DLM is available in small thin plastic Land Grid Array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

该LIS331DLM是一个超低功耗高性能的三轴线性加速度计属于“纳米”家庭，数字I2C/SPI串行接口标准输出。

该设备具有超低功耗运行模式，让先进的省电和智能睡眠唤醒功能。

动态用户可选LIS331DLM全尺度的±2g／±4G /±8G，它是能够测量加速度的输出数据率从0.5赫兹到400赫兹。

自检功能允许用户检查传感器在最终应用程序的功能。

该设备可以被配置为产生中断信号的惯性唤醒/自由坠落事件，以及由该设备本身的位置。

中断发生器的阈值和时间是可编程的终端用户的飞行。

该LIS331DLM小薄塑料栅格阵列（LGA）封装，可它是保证工作在扩展的温度范围从- 40°C + 85°C.

Key Features

• Wide supply voltage, 2.16 V to 3.6 V

• Low voltage compatible IOs, 1.8 V

• Ultra low-power mode consumption down to 10 μA

• ±2g/±4g/±8g dynamically selectable full-scale

• I²C/SPI digital output interface

• 8 bit resolution

• 2 independent programmable interrupt generators for free-fall and motion detection

• Sleep to wake-up function

• 6D orientation detection

• Embedded self-test

• 10000 g high shock survivability

• ECOPACK^® RoHS and "Green" compliant (see Section 8)

主要特点

宽电源电压，2.16伏至3.6伏

低电压兼容iOS 1.8 V

超低功耗模式消耗降至10

±2g／±4G /±8G动态选择的全面

I2C或SPI数字输出接口

8位分辨率

2个独立的可编程中断发生器自由下落和运动检测

睡眠唤醒功能

6D定位检测

嵌入式自测试

10000克高冲击生存能力

®Ecopack RoHS和“绿色”标准（见8节）
