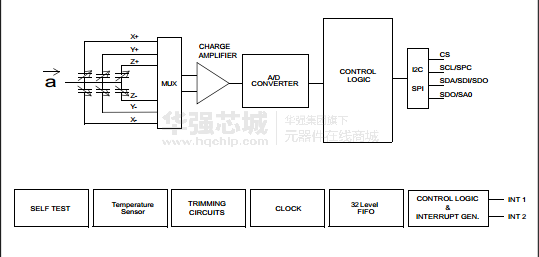

The LIS2DE12 is an ultra-low-power high-performance three-axis linear accelerometer belonging to the “femto” family with digital I²C/SPI serial interface standard output.

The LIS2DE12 has user-selectable full scales of ±2g/±4g/±8g/±16g and it is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz.

The self-test capability allows the user to check the functionality of the sensor in the final application.

The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself.

The LIS2DE12 is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

lis2de12是一个超低功耗高性能的三轴加速度计属于“飞秒”家庭数字I2C/SPI串行接口标准输出。

lis2de12具有用户可选的全尺度的±2g／±4G /±8g /±16G，它能够测量加速度的输出数据率从1赫兹到5.3千赫。

自检功能允许用户在最后的应用程序中检查传感器的功能。

该设备可以配置为产生中断信号由2个独立的惯性唤醒/自由坠落事件，以及由该设备本身的位置。

在一个小的lis2de12薄塑料栅格阵列（LGA）封装提供并保证工作在扩展温度范围从- 40°C + 85°C.

Key Features

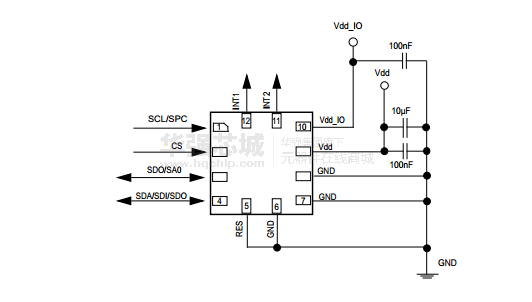

• Wide supply voltage, 1.71 V to 3.6 V

• Independent IOs supply (1.8 V) and supply voltage compatible

• Ultra-low power consumption down to 2 μA

• ±2g/±4g/±8g/±16g selectable full scales

• I²C/SPI digital output interface

• 8-bit data output

• 2 independent programmable interrupt generators for free-fall and motion detection

• 6D/4D orientation detection

• “Sleep-to-wake” and “return-to-sleep” functions

• Free-fall detection

• Motion detection

• Embedded temperature sensor

• Embedded self-test

• Embedded FIFO

• ECOPACK^®, RoHS and “Green” compliant

主要特点

宽电源电压，1.71伏至3.6伏

独立的iOS电源（1.8 V）和电源电压兼容

超低功耗降至2

±2g／±4G /±8G /±16G可选全尺度

I2C或SPI数字输出接口

8位数据输出

2个独立的可编程中断发生器自由下落和运动检测

6D四维定位检测

“睡眠觉醒”和“回归睡眠”功能

自由下落检测

运动检测

嵌入式温度传感器

嵌入式自测试

嵌入式FIFO

®Ecopack，ROHS和“绿色”标准
