LC898123F40XC

 Optical Image Stabilization (OIS) / Auto Focus (AF) Controller & Driver with 40 KB Flash Memory

制造商：ON

中文资料及数据手册

在线购买

产品信息

LC898123F40XC is a system solution integrating an ultra-low-power 32-bit DSP, Flash Memory, and analog peripherals for OIS (Optical Image Stabilization) /AF (Auto Focus) control, H-bridge, and linear drivers. Available in a tiny 3.22 mm x 2.30 mm chipscale package, this device’s 40 KB Flash memory enables high level commands and user data for greater system flexibility.
  • Flash Memory
  • 40 kByte Flash memory to store data and DSP program
  • Hall AD converter
  • 14-bit
  • Input 4 ch
  • Onchip 32-bit DSP
  • Built-in software digital servo filter
  • Built-in software Gyro filter
  • DA converter for Hall Offset setting : 3-bit / 3 ch
  • DA converter for Hall Bias : 8-bit / Output 3 ch
  • Built-in Serial I/F circuit
  • (2-wire Bus with clock stretch function) [1 MHz]
  • Built-in Hall Amp
  • (Gain of Op-amp : x5, x10, x13, x20, x40, x60)
  • Built-in OSC (Oscillator) : typ 41 MHz
  • Built-in LDO (Low Drop-Out regulator)
  • Digital Gyro I/F for various types of gyro (SPI Bus)

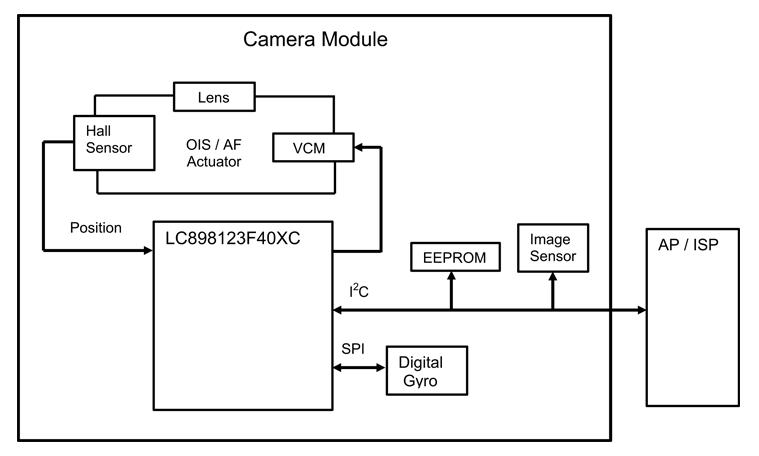

电路图、引脚图和封装图
