LC898123AXD
Optical Image Stabilization (OIS) / Auto Focus (AF) Controller & Driver
制造商：ON
产品信息
LC898123AXD is a system LSI integrating an on-chip 32bit DSP, a Flash Memory and peripherals including analog circuits for Optical Image Stabilization (OIS) / Auto Focus (AF) control and H-bridge and constant current drivers.
- On-chip 32-bit DSP
- Built-in software digital servo filter
- Built-in software Gyro filter
- Flash Memory :
- 12k Byte Flash memory to store data and DSP program
- AD converter :
- 12bit / Input 4ch / Equipped with a sample-hold circuit
- DA converter :
- 8bit / Output 3ch
- Built-in 2-wire Serial I/F circuit (with clock stretch function)
- Built-in Hall Bias circuit
- Built-in Hall Amp
- (Gain of Op-amp : x6, x12, x50, x75, x100, x150, x200)
- Built-in OSC (Oscillator) :
- Typ. 41MHz (with Frequency adjustment function)
- Built-in LDO (Low Drop-Out regulator)
- Digital Gyro I/F for various types of gyro (SPI Bus)
电路图、引脚图和封装图

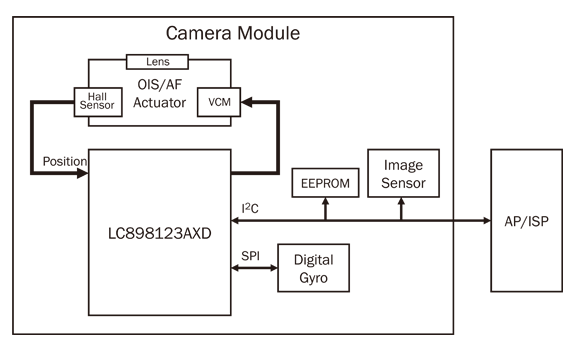

LC898123AXD电路图
