LC75056PE
Car Audio DSP with Bongiovi DPS
制造商：ON
产品信息
LC75056PE is a Digital Sound Processor which integrates audio signal processor, A/D, D/A, and volume into a single chip which are the prerequisites for car audio DSP. Programs are downloaded from internal Flash ROM into DSP RAM.
- Hardware :
- Analog input (stereo)
- Analog input (monaural)
- ADC 24bit
- DAC 24bit + EVR
- Digital input (IIS)
- Digital output (IIS)
- Sampling rate converter (SRC)
- Main microcontroller serial interface
- DSP (24bit)
- Supply voltage
- Logic (DSP) : 1.5V
- PLL circuit : 3.3V
- Crystal oscillation, digital I/O power supply : 3.3V
- CODEC analog power supply : 3.3V
电路图、引脚图和封装图

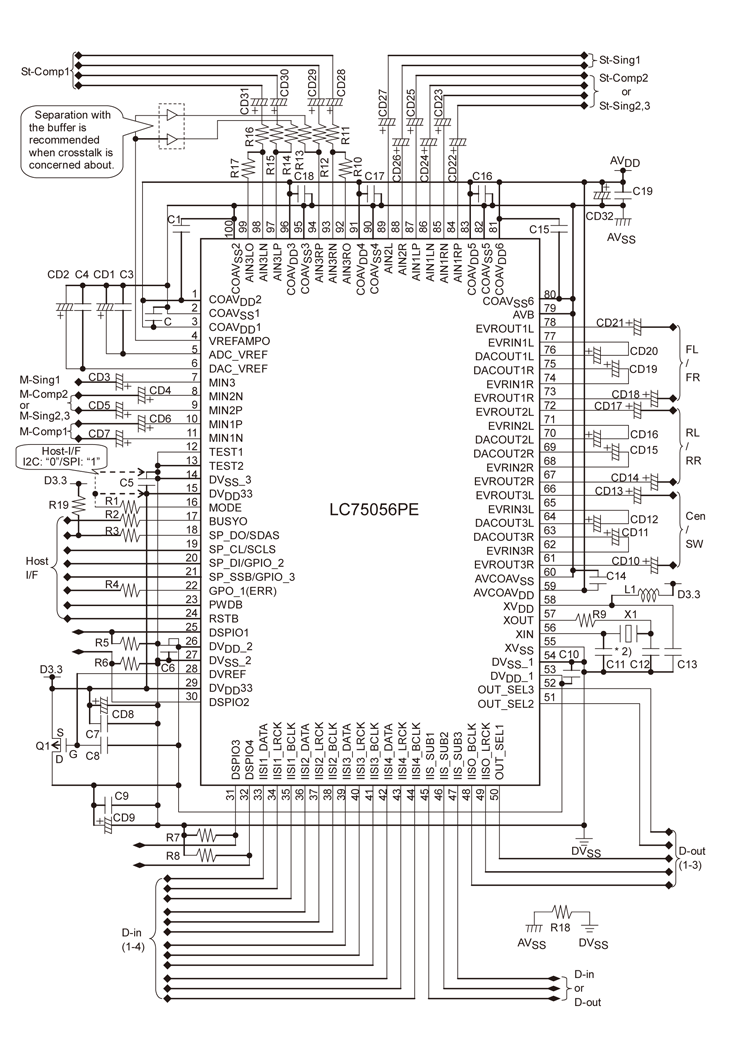

LC75056PE电路图
