The LC06111TMT is a protection IC for 1-cell lithium-ion secondary batteries with integrated power MOSFET. Also it integrates highly accurate detection circuits and detection delay circuits to prevent batteries from over-charging, over-discharging, over-current discharging and over-current charging.

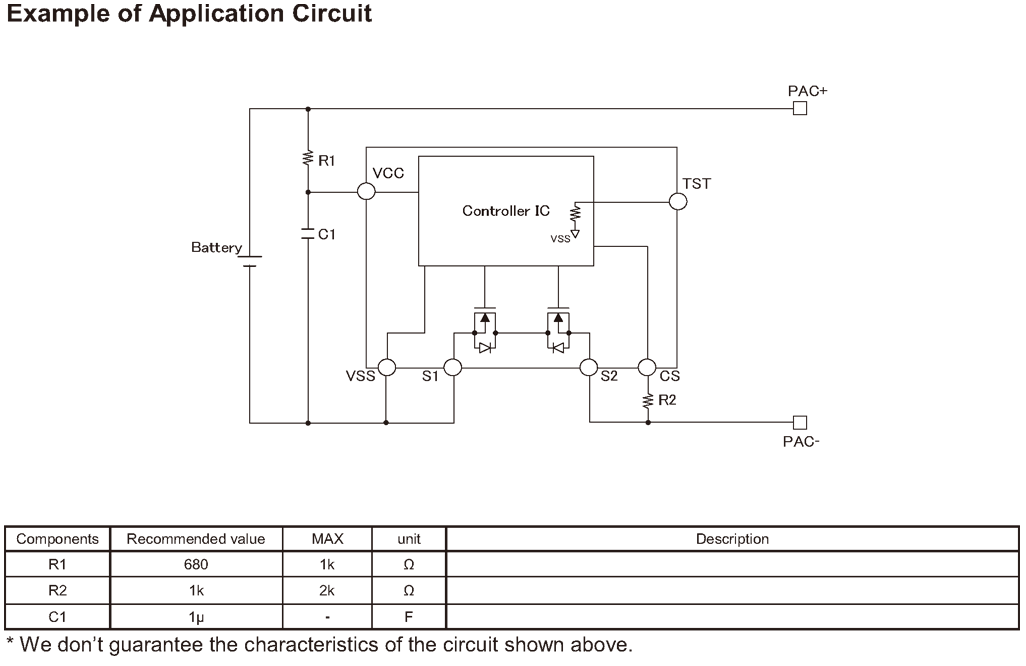

A battery protection system can be made by only LC06111TMT and few external parts.

• Charge-and-discharge power MOSFET are integrated
• ON resistance (total of charge and discharge ) 8.4 mΩ (typ)
• Highly accurate detection voltage/current at Ta = 25°C, VCC = 3.7 V
• Over-charge detection ±25 mV
• Over-discharge detection ±50 mV
• Charge over-current detection ±0.9 A
• Discharge over-current detection ±0.9 A
• Discharge/Charge over-current detection is compensated for temperaturedependency of power FET
