LB1860M

 2-Phase Half-Wave Variable Speed Fan Motor Driver

制造商：ON

中文资料及数据手册

在线购买

产品信息

The LB1860M is driver for two-phase unipolar drive DC brushless fan motors. They have functions such as driving, lock protection, restart and speed control.
  • Two-speed mode select function requiring less external component additions
  • Motor lock protection and automatic return circuit built in
  • Output transistors :
  • Output current IO = 1.5 A, output circuit protection Zener diodes (M-Vz = 57 V)
  • Built-in thermal shutdown circuit
  • Built-in rotation detect function
  • 12 V or 24 V power supply by changing an external resistor
  • Connectable direct to a Hall element

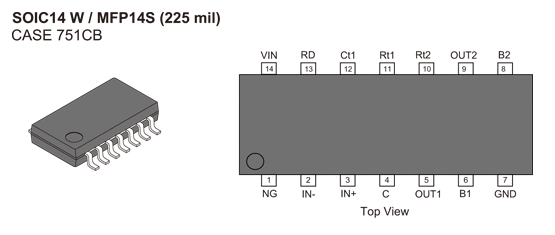

电路图、引脚图和封装图
