LAN89530

10/100 Ethernet controller for Automotive applications

制造商:

产品信息

For product comparison, please consider:

Microchip's LAN89530 was specifically designed to provide a high performance, low-cost USB to 10/100 Ethernet connectivity solution with a Hi-Speed USB interface. The internal USB device controller is USB 2.0-compliant and implements Control, Interrupt and Bulk-in and Bulk-out USB endpoints. Microchip's UniClock™ technology simplifies the clocking scheme and reduces system BOM costs by using a single 25 MHz crystal for both USB and Ethernet connectivity - without the need for additional components when adding USB hubs.Applications well-suited for the LAN89530 include a diagnostic interface for dealership service bay, a fast software download interface with an OBD connector and an in-vehicle engineering development interface, among others. The LAN89530 also supports auto-negotiation, auto-polarity correction, HP Auto-MDIX and is compliant with IEEE802.3 and 802.3u standards. An external MII provides support for an external PHY which enables HomePNA® or HomePlug® functionality. Multiple power management features are provided, including various low power modes, as well as Magic Packet, Wake-on-LAN and Link Status Change wake events. These events can be programmed to initiate a remote USB wakeup. A PCI-like PME wake is also supported when the USB host controller is disabled.

Additionally, Microchip offers its complimentary and confidential LANCheck® online design review services to customers who select our products for their application design-in.*


*Theservice is subject to Microchip'sand requires a myMicrochip account.

The LAN89530 is a full-featured, single-chip USB 2.0 to 10/100 Ethernet controller which incorporates essential protocol requirements for operating IEEE 802.3/802.3u standards. It is specifically designed and tested for automotive grade applications including diagnostic interface, system test interface, and fast software downloads where performance, flexibility, ease of integration and system cost control are required. The LAN89530 has an USB 2.0 Hi-Speed device controller and Hi-Speed PHY integrated.

Applications

  Diagnostic interface for dealership service bay

  Fast software download interface with an On Board Diagnostic (OBD) connector

  Gateway service interface for dealership, aftermarket and repair shop

  In-vehicle engineering development interface

  Vehicle manufacturing test interface for production plant assembly line

  Legislated inspections for emissions and/or safety checks

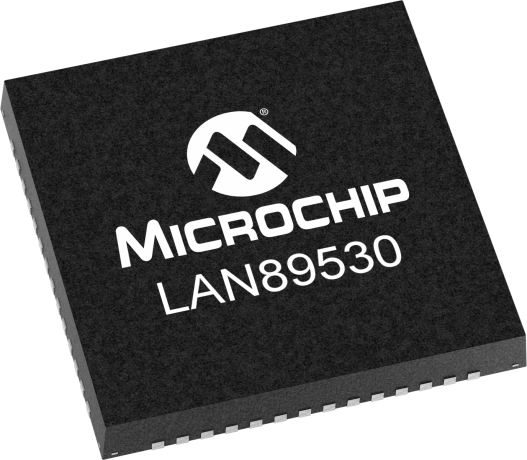

    LAN89530封装图
