IIS328DQ

用于工业应用的高性能低功耗3轴加速度计

制造商:

中文资料及数据手册

在线购买

产品信息

The IIS328DQ is an ultra-low-power high-performance 3-axis linear accelerometer with a digital serial interface, SPI or I2C compatible. Recommended for industrial applications requiring an extended temperature range and long lifespan, the device features ultra-low-power operational modes that allow advanced power saving and smart sleep-to-wakeup functions. The IIS328DQ has dynamic user-selectable full-scales of ±2g/±4g/±8g and is capable of measuring accelerations with output data rates from 0.5 Hz to 1 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate an interrupt signal through inertial wakeup events, or by the position of the device itself. Interrupt generators are programmable by the end user on-the-fly. Available in a small, quad, flat pack no-lead package (QFPN) with a 4x4 mm footprint, the IIS328DQ corresponds to the trend towards application miniaturization, and is guaranteed to operate over a temperature range from -40 °C to +105 °C.

iis328dq是一个超低功耗高性能的三轴线性加速度计的数字串行接口、SPI或I2C兼容。建议需要一个扩展的温度范围和使用寿命长的工业应用,该设备的功能超低功率操作模式,让先进的节能和智能休眠唤醒功能。iis328dq动态用户可选的全尺度的±2g/±4G /±8G可测量加速度的输出数据率从0.5赫兹到1千赫。自检功能允许用户检查传感器在最终应用程序的功能。该装置可用于产生惯性唤醒事件信号中断,或设备本身的位置。中断发生器是可编程的终端用户的飞行。在一个小的,方形,扁平无引线封装(qfpn)用4x4毫米的足迹,iis328dq对应对应用小型化的趋势,并保证工作在温度范围从- 40°C + 105°C.

Key Features

  • Wide supply voltage range: 2.16 V to 3.6 V

  • Low voltage compatible IOs: 1.8 V

  • Ultra-low power consumption: down to 10 μA

  • ±2g/±4g/±8g dynamically selectable full-scale

  • SPI / I2C digital output interface

  • 16-bit data output

  • 2 independent programmable interrupt generators

  • System sleep/wakeup function

  • Extended temperature range: -40 °C to 105 °C

  • Embedded self-test

  • High shock survivability: up to 10000 g

  • ECOPACK®, RoHS and “Green” compliant

主要特点

宽电源电压范围:2.16伏至3.6伏

低电压:1.8 V兼容iOS

超低功耗:降至10

±2g/±4G /±8G动态选择的全面

SPI和I2C数字输出接口

16位数据输出

2个独立的可编程中断发生器

系统睡眠/唤醒功能

扩展温度范围:- 40°为105°

嵌入式自测试

高冲击生存能力:高达10000克

®Ecopack,ROHS和“绿色”标准


电路图、引脚图和封装图

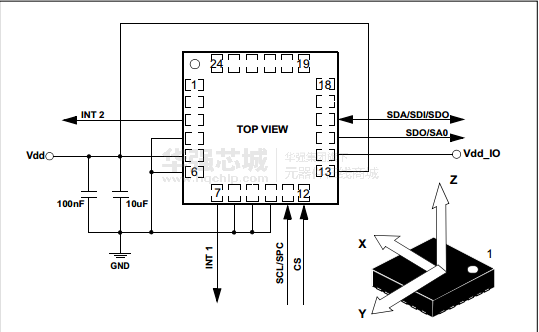

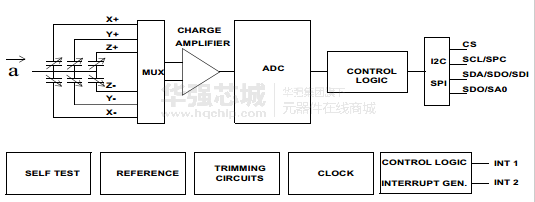

    IIS328DQ电路图

      IIS328DQ引脚图

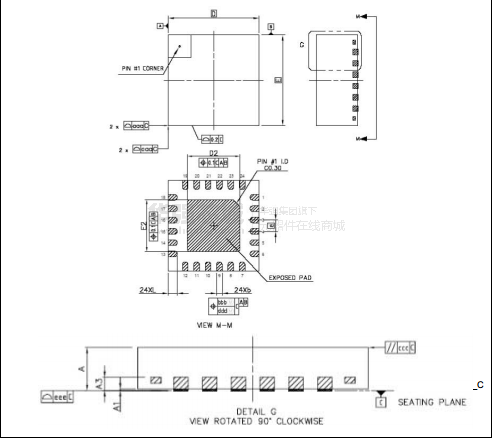

        IIS328DQ封装图
