IIS2DH

MEMS运动传感器的数字输出:超低功耗高性能的三轴加速度计

制造商:

中文资料及数据手册

在线购买

产品信息

The IIS2DH is an ultra-low-power high-performance three-axis linear accelerometer with digital I2C/SPI serial interface standard output.

The IIS2DH has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz.

The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself.

The self-test capability allows the user to check the functionality of the sensor in the final application.

The IIS2DH is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

iis2dh是一个超低功耗高性能轴线性加速度计的数字I2C和SPI串行接口标准输出。

iis2dh具有用户可选的全尺度的±2g/±4G /±8g /±16G和能够测量加速度的输出数据速率从1赫兹到5.3千赫。

该设备可以配置为产生中断信号由2个独立的惯性唤醒/自由坠落事件,以及由该设备本身的位置。

自检功能允许用户在最后的应用程序中检查传感器的功能。

在一个小的iis2dh薄塑料栅格阵列(LGA)封装提供并保证工作在扩展温度范围从- 40°C + 85°C.

Key Features

  • Wide supply voltage, 1.71 V to 3.6 V

  • Independent IOs supply (1.8 V) and supply voltage compatible

  • Ultra-low power consumption down to 2 μA

  • ±2g/±4g/±8g/±16g selectable full scales

  • I2C/SPI digital output interface

  • 3 operating modes: low-power, normal, high-resolution mode

  • 2 independent programmable interrupt generators for free-fall and motion detection

  • 6D/4D orientation detection

  • Motion detection & free-fall detection

  • “Sleep-to-wake” and “return-to-sleep” functions

  • Embedded FIFO

  • Embedded self-test

  • Embedded temperature sensor

  • ECOPACK®, RoHS and “Green” compliant

主要特点

宽电源电压,1.71伏至3.6伏

独立的iOS电源(1.8 V)和电源电压兼容

超低功耗降至2

±2g/±4G /±8G /±16G可选全尺度

I2C或SPI数字输出接口

3种工作模式:低功耗,高精度,高分辨率模式

2个独立的可编程中断发生器自由下落和运动检测

6D四维定位检测

运动检测与自由下落检测

“睡眠觉醒”和“回归睡眠”功能

嵌入式FIFO

嵌入式自测试

嵌入式温度传感器

®Ecopack,ROHS和“绿色”标准


电路图、引脚图和封装图

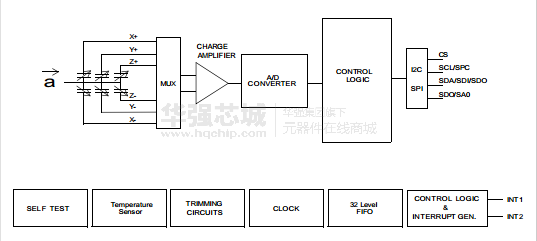

    IIS2DH电路图

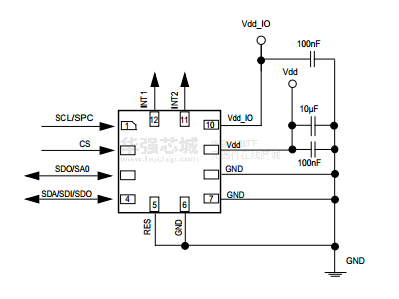

      IIS2DH引脚图

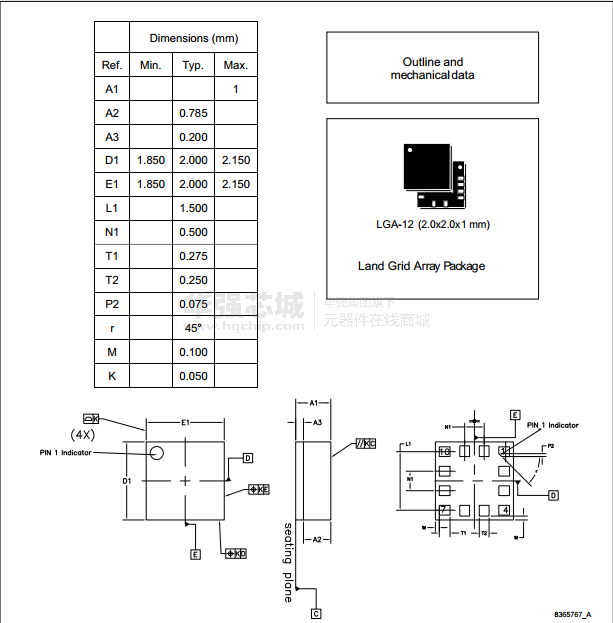

        IIS2DH封装图
