HV9113

SWITCHMODE CONTROLLER, 120V, 1% REF

制造商:

产品信息

HV9113 is a BiCMOS/DMOS single-output, pulse width modulator IC intended for use in high-speed, high-efficiency switch mode power supplies. It provides all the functions necessary to implement a single-switch current mode PWM, in any topology, with a minimum of external parts.Because the HV9113 utilizesproprietary BiCMOS/DMOS technology, it requires less than one tenth of the operating power of conventional bipolar PWM ICs, and can operate at more than twice their switching frequency. The dynamic range for regulation is also increased, to approximately 8 times that of similar bipolar parts. It starts directly from any DC input voltage between 10 and 120VDC, requiring no external power resistor. The output stage is push-pull CMOS and thus requires no clamping diodes for protection, even when significant lead length exists between the output and the external MOSFET. The clock frequency is set with a single external resistor. Accessory functions are included to permit fast remote shutdown (latching or non-latching) and under voltage shutdown. For similar ICs intended to operate directly from up to 450VDC input, please consult the data sheets for the HV9120 and HV9123.For detailed circuit and application information, please refer to application notes AN-H13 and AN-H21 to AN-H24.

  10 to 120V input voltage range

  Current-mode control

   High efficiency

  Up to 1.0MHz internal oscillator

  Internal start-up circuit

  Low internal noise

   99% maximum duty cycle

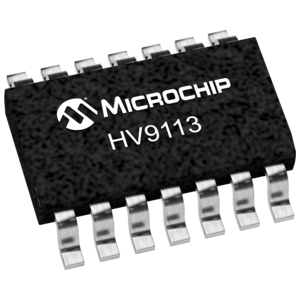

    HV9113封装图
