HV857

Inductor Based Single Lamp EL Driver

制造商:

产品信息

The HV857 is a high voltage driver designed for driving Electroluminescent (EL) lamps of up to 5 square inches. The input supply voltage range is from 1.8 to 5.0V. The device uses a single inductor and a minimum number of passive components.The nominal regulated output voltage that is applied to the EL lamp is ±95V. The chip can be enabled/disabled by connecting the resistor on RSW-Osc to VDD/GND.The HV857 has two internal oscillators, a switching MOSFET, and a high voltage EL lamp driver. The frequency for the switching MOSFET is set by an external resistor connected between the RSW-Osc pin and the supply pin VDD. The EL lamp driver frequency is set by an external resistor connected between RELOsc pin and VDD pin. An external inductor is connected between the LX and VDD pins or VIN for split supply applications. A 0.003- 0.1μF capacitor is connected between CS and ground. The EL lamp is connected between VA and VB.The switching MOSFET charges the external inductor and discharges it into the capacitor at CS. The voltage at CS will start to increase. Once the voltage at CS reaches a nominal value of 95V, the switching MOSFET is turned OFF to conserve power. The outputs VA and VB are configured as an H bridge and are switching in opposite states to achieve ±95V across the EL lamp.

  Patented audible noise reduction

  Patented lamp aging compensation

  190 VPP output voltage for higher brightness

  Patented output timing for high efficiency

  Single cell lithium ion compatible

  150nA shutdown current

  Wide input voltage range 1.8 to 5.0V

  Separately adjustable lamp and converter frequencies

  Output voltage regulation

  Split supply capability

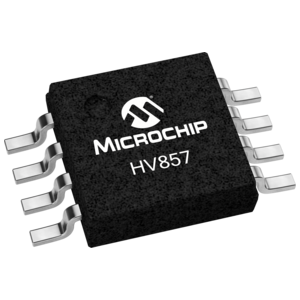

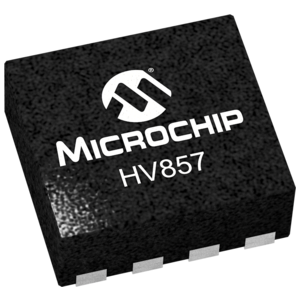

    HV857封装图
