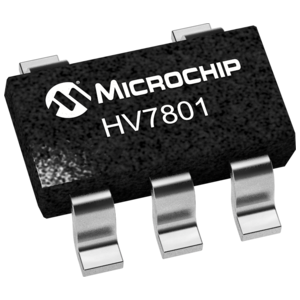

The HV7801 high side current monitor IC transfers a high-side current measurement voltage to its ground referenced output with a voltage gain of five. The measurement voltage typically originates at a current sense resistor which is located in a “high side” circuit, such as the positive supply line.This monitor IC features a very wide input voltage range, high accuracy of transfer ratio, small size, low component count, low power consumption, ease of use, and low cost. Offline, battery, and portable applications can be served equally well due to the wide input voltage range and the low quiescent current.

  Supply voltage 8V to 450V

  Voltage output device

  Typical gain 5.0±1%

  Max VSENSE 500mV

  Fast rise and fall time, 700ns to 2.0µs

  Maximum quiescent current 50µA
