HV7361

HIGH SPEED, +/-100V 2.5A, ULTRASOUND RTZ PULSWER WITH T/R SWITCH

制造商:

产品信息

HV7361 is a high voltage, high-speed, pulse generator with built-in, fast return to zero damping FETs, and an integrated, two terminal, low noise T/R switch. This high voltage and high-speed integrated circuit is designed for portable medical ultrasound image devices, but can also can be used for NDT and test equipment applications.The HV7361 consists of a controller logic interface circuit, level translators, AC coupled MOSFET gate drivers and high voltage and high current P-channel and N-channel MOSFETs as the output stage.The peak output currents of each channel are guaranteed to be over ±2.5A with up to ±100V of pulse swing. The AC coupling topology for the gate drivers not only saves two floating voltage supplies, it also makes the PCB layout easier.

  HVCMOS® technology for high performance

  High density integration AC coupled pulser

  0 to ±100V output voltage

  ±2.5A source and sink minimum pulse current

  Up to 35MHz operating frequency

  2.0ns matched delay times

  2.5, 3.3 or 5.0V CMOS logic interface

  Built-in two terminal, low noise T/R switch

  Low power consumption and very simple to use

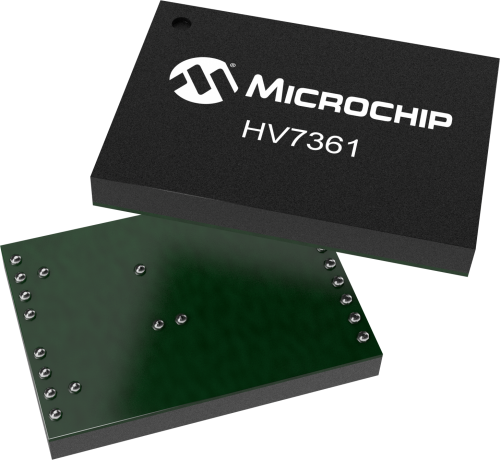

    HV7361封装图
