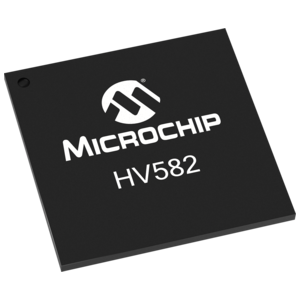

The HV582 is a unipolar, 96-channel low-voltage serial to high-voltage parallel converter with push-pull outputs. This device has been designed for applications requiring multiple high-voltage outputs with current sinking and sourcing capabilities, such as plasma displays and Inkjet printers. The device consists of six parallel 16-bit shift registers, a 96-bit latch and 96 high-voltage outputs. The shift registers operate at 30 MHz, allowing 180 MHz data rates due to the parallel arrangement. The HV582 is offered in a 169-ball 10 x 10 x 1.1 mm TFBGA package.

  96 High Voltage Channels

  80V Operating Output Voltage

  75 mA Sink/Source Peak Current

  6 Interleaved 16-bit Shift Registers

  Clockwise and Counter-Clockwise Data Shifting via DIR Pin

  30 MHz Data Rate

  Operating Junction Temperature: -40°C to 125°C

  Package 169- Ball 10x10x1.1mm TFBGA
