HV5630

32-CHANNEL, W/OPEN DRAIN OUTPUTS, 300V

制造商:

产品信息

The HV5630 is a low-voltage serial to high-voltage parallel converter with open drain outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output high voltage current sinking capabilities such as driving inkjet and electrostatic print heads, plasma panels, vacuum fluorescent, or large matrix LCD displays.This device consists of a 32-bit shift register, 32 latches, and control logic to perform the polarity select and blanking of the outputs. Data is shifted through the shift register on the high to low transition of the clock. The HV5630 shifts in the clockwise direction when viewed from the top of the package. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register. Operation of the shift register is not affected by the LE (latch enable), BL (blanking), or the POL (polarity) inputs. Transfer of data from the shift register to the latch occurs when the LE (latch enable) input is high. The data in the latch is stored when LE is low.

  Processed with HVCMOS® technology

  Sink current minimum 100mA

  Shift register speed 8.0MHz

  Polarity and Blanking inputs

  CMOS compatible inputs

  Forward and reverse shifting options

  Diode to VPP allows efficient power recovery

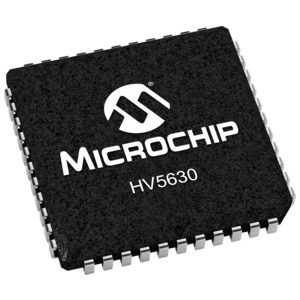

    HV5630封装图
