HV5308

32-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V

制造商:

产品信息

The HV5308B is a low voltage serial to high voltage parallel converter with push-pull outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output high voltage current sourcing and sinking capabilities, such as driving plasma panels, vacuum fluorescent, or large matrix LCD displays.  The HV5308B consists of a 32-bit shift register, 32 latches, and control logic to enable outputs. Q1 is connected to the first stage of the shift register through the Output Enable logic. Data is shifted through the shift register on the low to high transition of the clock. When viewed from the top of the package, the HV5308B shifts in the clockwise direction. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register (32). Operation of the shift register is not affected by the LE (latch enable) or the OE (output enable) inputs. Transfer of data from the shift register to the latch occurs when the LE input is high. The data in the latch is retained when LE is low.

  Processed with HVCMOS® technology

  Low power level shifting

  Source/sink current minimum 20mA

  Shift register speed 8.0MHz

  Latched data outputs

  CMOS compatible inputs

  Forward and reverse shifting options

  Diode to VPP allows efficient power recovery

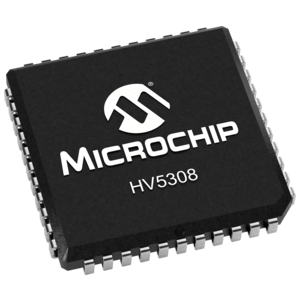

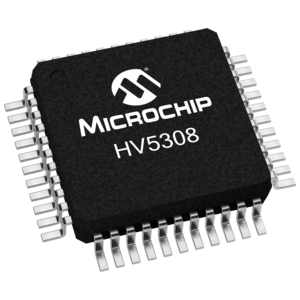

    HV5308封装图
