HV2662

24-CH LOW CHARGE INJECTION SPST HIGH VOLTAGE ANALOG SWITCH

制造商:

产品信息

HV2662 is a low charge injection 24-channel high voltage analog switch integrated circuit (IC) intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as medical ultrasound imaging, piezoelectric transducer driver, and printers.Input data is shifted into a 24bit shift register that can then be retained in a 24bit latch. To reduce any possible clock feed through noise, the latch enable bar should be left high until all bits are clocked in. Data are clocked in during the rising edge of the clock. Using HVCMOS technology, this device combines high voltage bilateral DMOS switches and low power CMOS logic to provide efficient control of high voltage analog signals.The device is suitable for various combinations of high voltage supplies, e.g., VPP/VNN:+40V/-160V, +100V/-100V, and +160V/-40V.

  24 Channels of high voltage analog switch

  3.3 or 5.0V CMOS input logic level

  24 Channel SPST configuration

  20MHz data shift clock frequency

  HVCMOS technology for high performance

  Very low quiescent power dissipation-10µA

  Low parasitic capacitance

  DC to 50MHz analog signal frequency

  -60dB typical OFF-isolation at 5.0MHz

  CMOS logic circuitry for low power

  Excellent noise immunity

  Cascadable serial data register with latches

  Flexible operating supply voltages

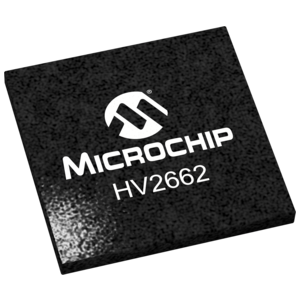

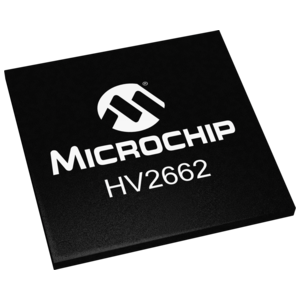

    HV2662封装图
