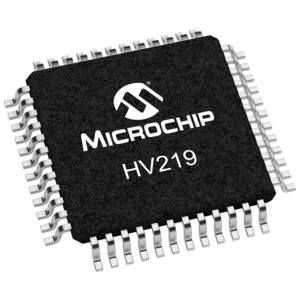

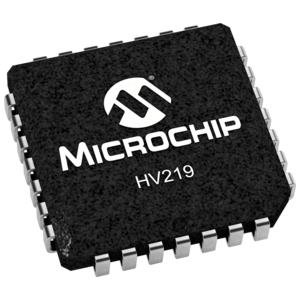

HV219 is a low switch resistance, low charge injection, 8-channel, 200V, analog switch integrated circuit (IC) intended primarily for medical ultrasound imaging. The device can also be used for NDE (non-destructive evaluation) applications. The HV219 is a lower switch resistance, 11O versus 22O, version ofHV20220 device. The lower switch resistance will help reduce insertion loss. It has the same pin configuration as that ofHV20220PJ and the HV20220FG.The device is manufactured usingHVCMOS® (high voltage CMOS) technology with high voltage bilateral DMOS structures for the outputs and low voltage CMOS logic for the input control. The outputs are configured as eight independent single pole single throw 11O analog switches. The input logic is an 8-bit serial to parallel shift register followed by an 8-bit parallel latch. The switch states are determined by the data in the latch. Logic high will correspond to a closed switch and logic low as an opened switch.The HV219 is designed to operate on various combinations of high voltage supplies. For example the VPP and VNN supplies can be:+40V/-160V, +100V/-100V, or +160V/-40V. This allows the user to maximize the signal voltage for uni-polar negative, bi-polar, or uni-polar positive.

  HVCMOS® technology for high performance

  Very low quiescent power dissipation (-10µA)

  Output on-resistance typically 11Ω

  Low parasitic capacitance

  DC to 50MHz small signal frequency response

  -60dB typical off-isolation at 5.0MHz

  CMOS logic circuitry for low power

  Excellent noise immunity

  Serial shift register logic control with latches

  Flexible operating supply voltages

  Surface mount packages
