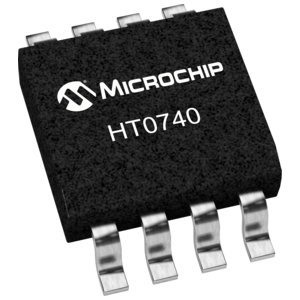

HT0740 is a single channel, high voltage, low input current, isolated driver utilizingproprietary HVCMOS® technology. It is designed to drive discrete MOSFETs, configured as high side switches, up to 400V. The HT0740 generates an independent DC isolated voltage across the pair of outputs when the logic input is at a logic high. The HT0740 does not require any external power supplies. The internal supply voltage is supplied from the logic input when it is in the high state.

  ±400V input to output isolation

  Low input logic current, 500µA max

  No external voltage supply required

  Floating isolated output drivers

  5.0V logic compatible
