优势和特点

  Passive: No DC Bias Required

  Input IP3: +22 dBm

  LO/RF Isolation: 35 dB

  Wide IF Bandwidth: DC - 8 GHz

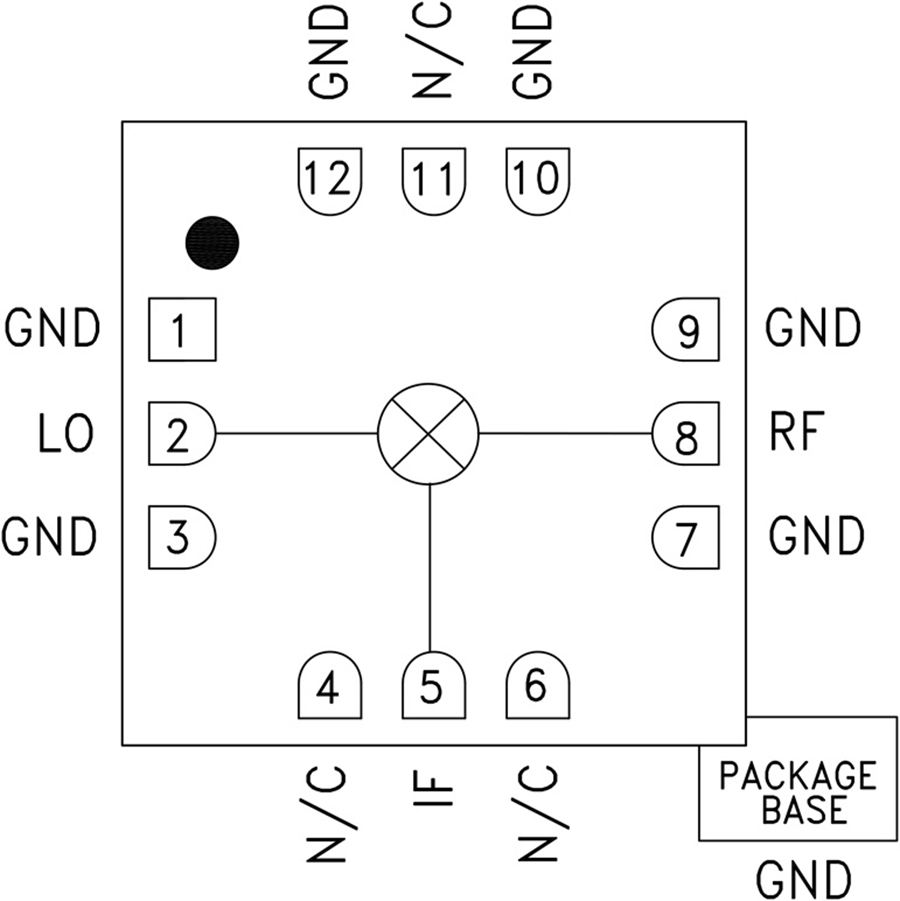

  12 Lead Ceramic 3x3 mm SMT Package: 9mm2

产品详情

The HMC774ALC3B is a general purpose double balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverter or downconverter between 7 and 34 GHz. This mixer requires no external components or matching circuitry. The HMC774ALC3B provides excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates best with LO drive levels above +15 dBm. The HMC774ALC3B eliminates the need for wire bonding, allowing use of surface mount manufacturing techniques.

Applications

  Point-to-Point Radios

  Point-to-Multi-Point Radios & VSAT

  Test Equipment & Sensors

  Military End-Use
