Microchip's ENC28J60 is a 28-pin, 10BASE-T stand alone Ethernet Controller with on board MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface.With a small foot print package sizethe ENC28J60 minimizes complexity, board space and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.

Microchip's complimentary and confidential LANCheck® online design review services are available for customers who have selected our products for their application design-in*.

*The  is subject to Microchip's  and requires a myMicrochip account.

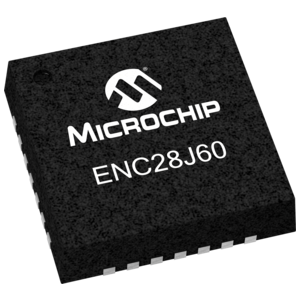

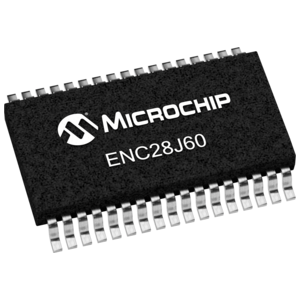

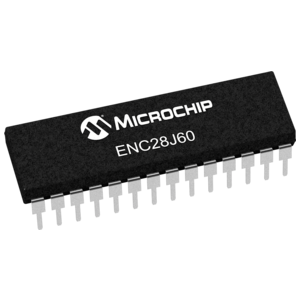

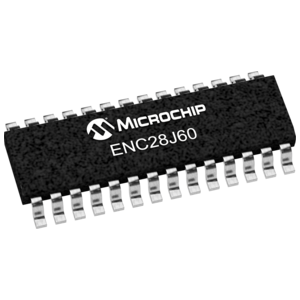

General:- IEEE 802.3 compatible Ethernet Controller- Integrated MAC and 10BASE-T PHY- 8 Kbyte Transmit/Receive Packet Dual Port BufferSRAM- Programmable Automatic Retransmit on Collision- Programmable Padding and CRC Generation- Programmable Automatic Rejection of Erroneous PacketsBuffer:- Configurable transmit/receive buffer size- Hardware managed circular receive FIFO- Byte-wide random and sequential access- Internal DMA for fast memory copying- Hardware assisted IP checksum calculationPHY:- Wave shaping output filter- Loopback modeMAC:- Support for Unicast, Multicast and Broadcast packets- Programmable pattern matching of up to 64 bytes withinpacket at user defined offset- Programmable wake-up on multiple packet formats,including Magic Packet®, Unicast, Multicast, Broadcast,specific packet match or any packetPackaging:- SOIC- SPDIP- SSOP- QFN (6x6 mm)
