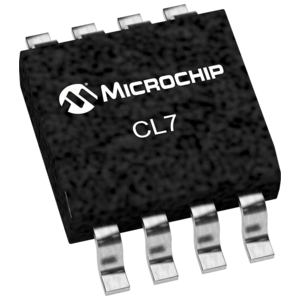

The CL7 is a linear fixed current regulator designed for driving high brightness LEDs at 100mA from nominal 12V, 24V, and 48V power supplies. With a maximum rating of 90V, it is able to withstand transients without the need for additional transient protection circuitry. The CL7 is offered in the 8-Lead SOIC package. An active low enable input (EN) allows logic level control of the LED for on/off control or PWM dimming. The enableinput has 100kΩ pull-down resistance. For applications not needing an enable input, refer to the CL6 data sheet.Over temperature protection shuts off the LED current when the die temperature rises above 135°C (nominal). Full LED current resumes when the die temperature falls below 105°C (nominal).

  100mA ±5% constant current drive

  Built-in reverse polarity protection

  Logic level enable

  Dimmable via EN pin

  Overtemperature protection

  90V max rating for transient immunity
