BD680A

 4.0 A, 80 V PNP Darlington Bipolar Power Transistor

制造商：ON

中文资料及数据手册

在线购买

产品信息

This series of plastic, medium-powerPNP Darlington transistors can be used as output devices in complementary general-purpose amplifier applications.
  • High DC Current Gain -
  • h
  • = 750 (Min) @ I
  • = 1.5 and 2.0 Adc
  • Monolithic Construction
  • BD676, 676A, 678, 678A, 680, 680A, 682
  • are complementary with BD675, 675A, 677, 677A, 679, 679A, 681
  • BD 678, 678A, 680, 680A
  • are equivalent to MJE 700, 701, 702, 703
  • Pb-Free Packages are Available

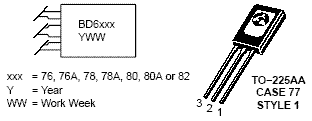

电路图、引脚图和封装图

    BD680A电路图
