BD680
4.0 A, 80 V PNP Darlington Bipolar Power Transistor
制造商：ON
产品信息
This series of plastic, medium-powerPNP Darlington transistors can be used as output devices in complementary general-purpose amplifier applications.
- High DC Current Gain -
- h
- = 750 (Min) @ I
- = 1.5 and 2.0 Adc
- Monolithic Construction
- BD676, 676A, 678, 678A, 680, 680A, 682
- are complementary with BD675, 675A, 677, 677A, 679, 679A, 681
- BD 678, 678A, 680, 680A
- are equivalent to MJE 700, 701, 702, 703
- Pb-Free Packages are Available

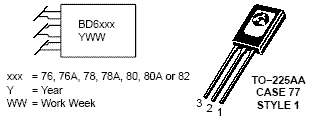

电路图、引脚图和封装图
BD680电路图
