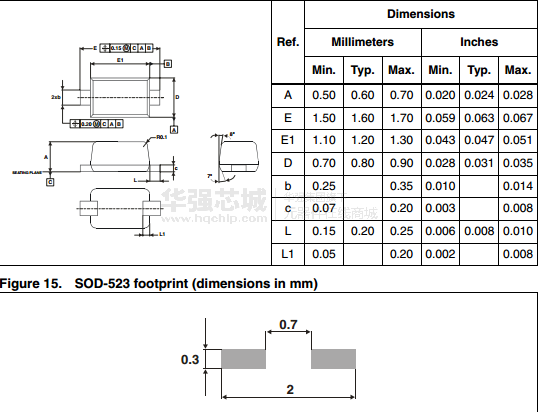

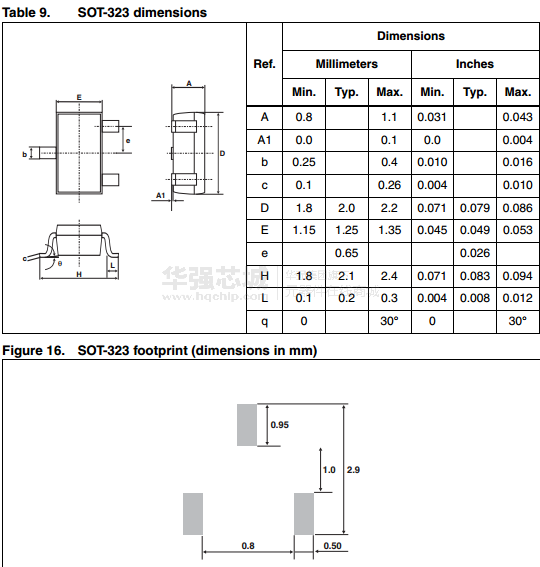

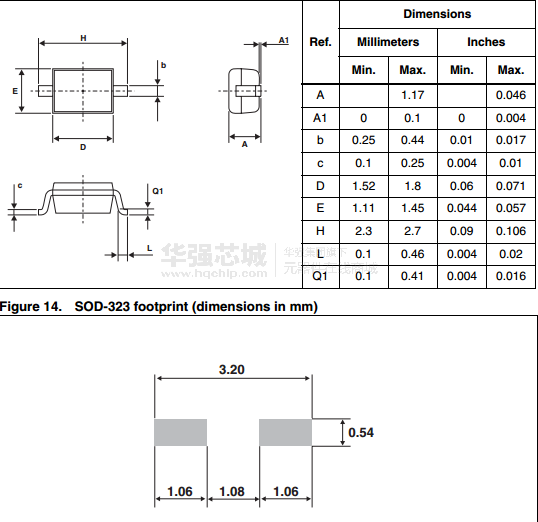

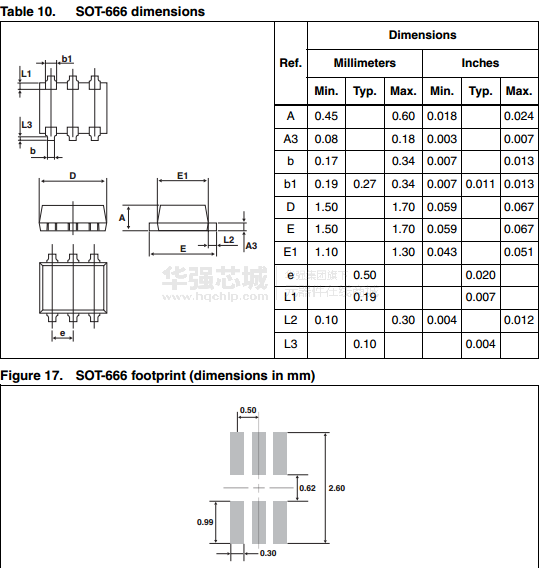

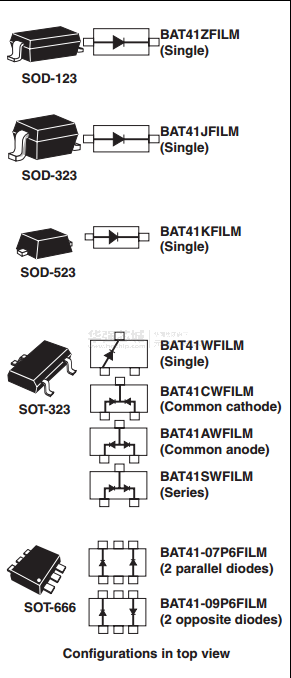

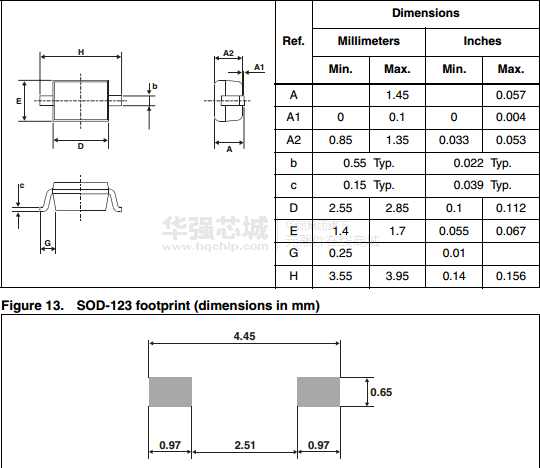

The BAT41 series uses 100 V Schottky barrier diodes packaged in SOD-123, SOD-323, SOD-523, SOT-323, or SOT-666. This series is specially suited for switching mode with low I_R losses

bat41系列采用100 V肖特基势垒二极管封装在sod-123，SOD-323，sod-523，323，或sot-666。该系列特别适用于低红外损耗的开关模式

Key Features

• Low leakage current losses

• Negligible switching losses

• Low forward and reverse recovery times

• Extremely fast switching

• Surface mount device

• Low capacitance diode

主要特点

低漏电流损耗

可忽略的开关损耗

低正向和反向恢复时间

极快速切换

表面贴装器件

低电容二极管
