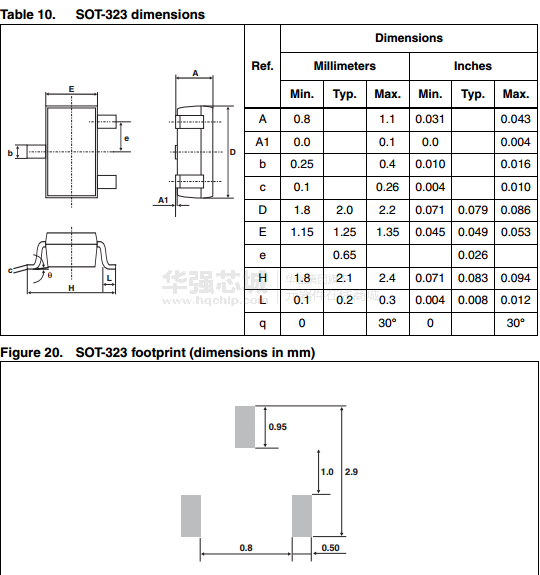

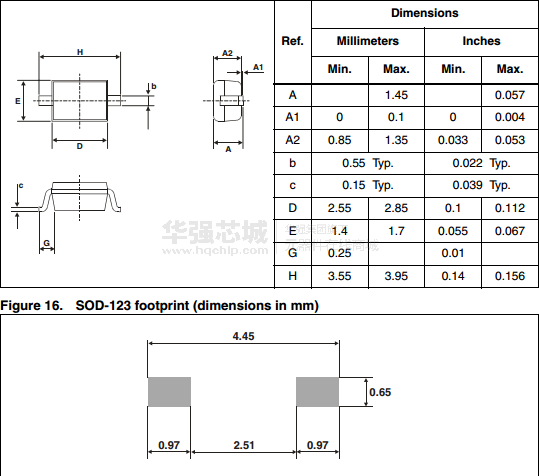

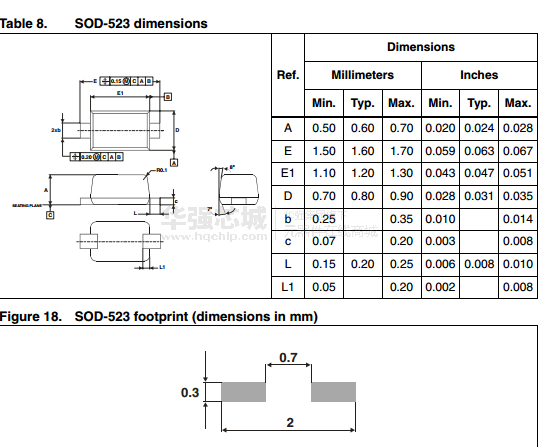

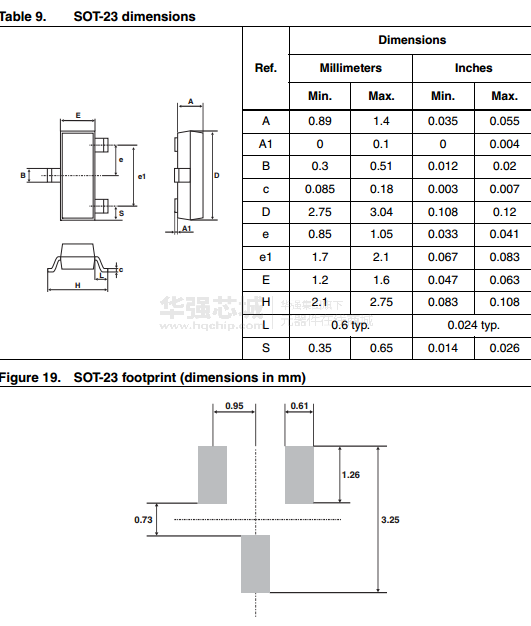

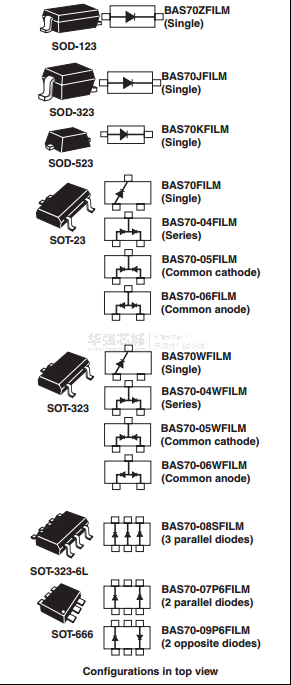

The BAS70 series uses 70 V Schottky barrier diodes packaged in SOD-123, SOD-323, SOD-523, SOT-23, SOT-323, SOT-323-6L or SOT-666. These diodes are specially suited for signal detection and temperature compensation in RF applications.

bas70系列采用70 V肖特基势垒二极管封装在sod-123，SOD-323，sod-523，SOT-23，323，sot-323-6l或sot-666。这些二极管特别适合于射频应用中的信号检测和温度补偿。

Key Features

• Very low conduction losses

• Negligible switching losses

• Low forward and reverse recovery times

• Surface mount device

• Low capacitance diode

• Low resistance and inductance

主要特点

极低传导损耗

可忽略的开关损耗

低正向和反向恢复时间

表面贴装器件

低电容二极管

低电阻和电感
