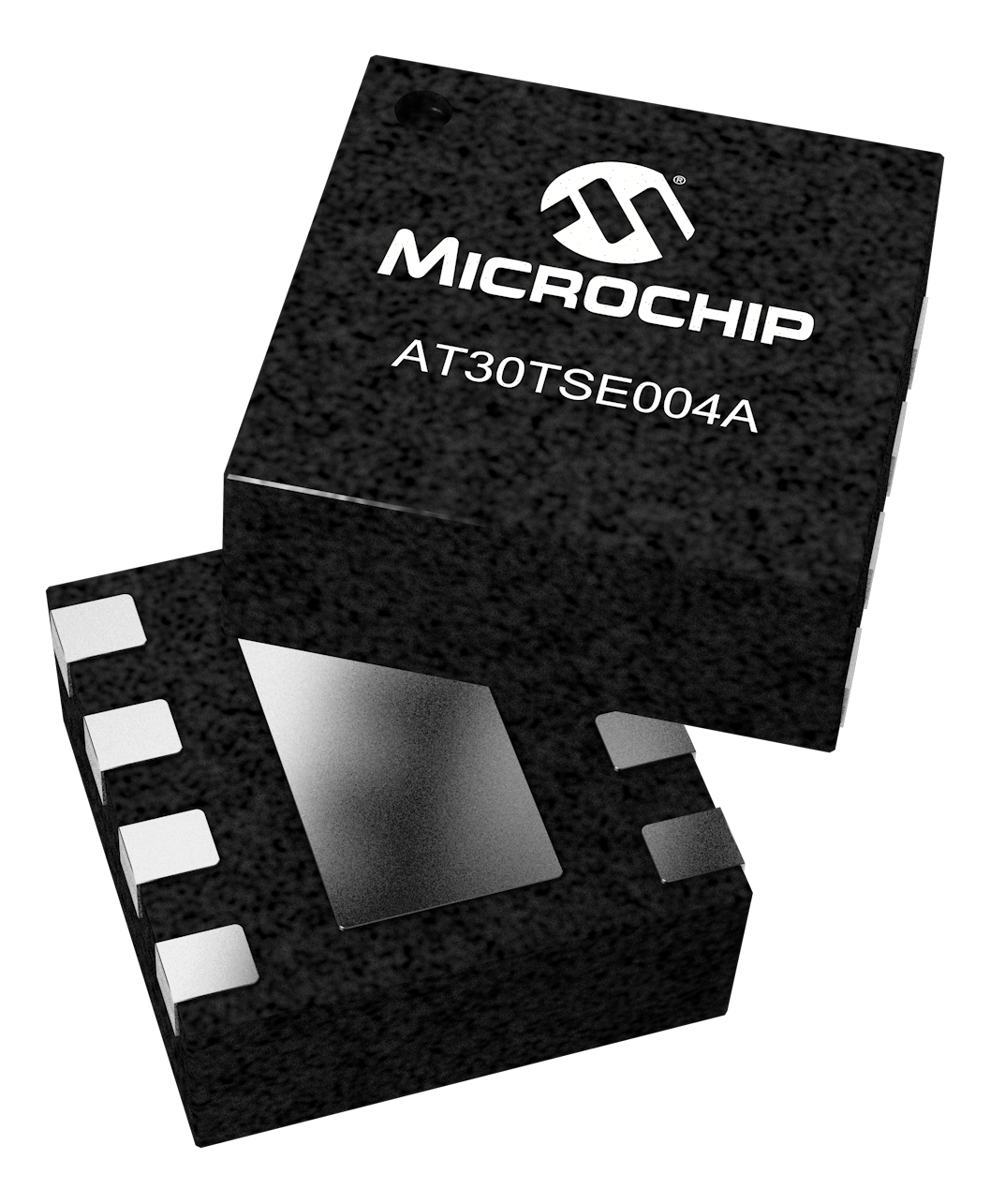

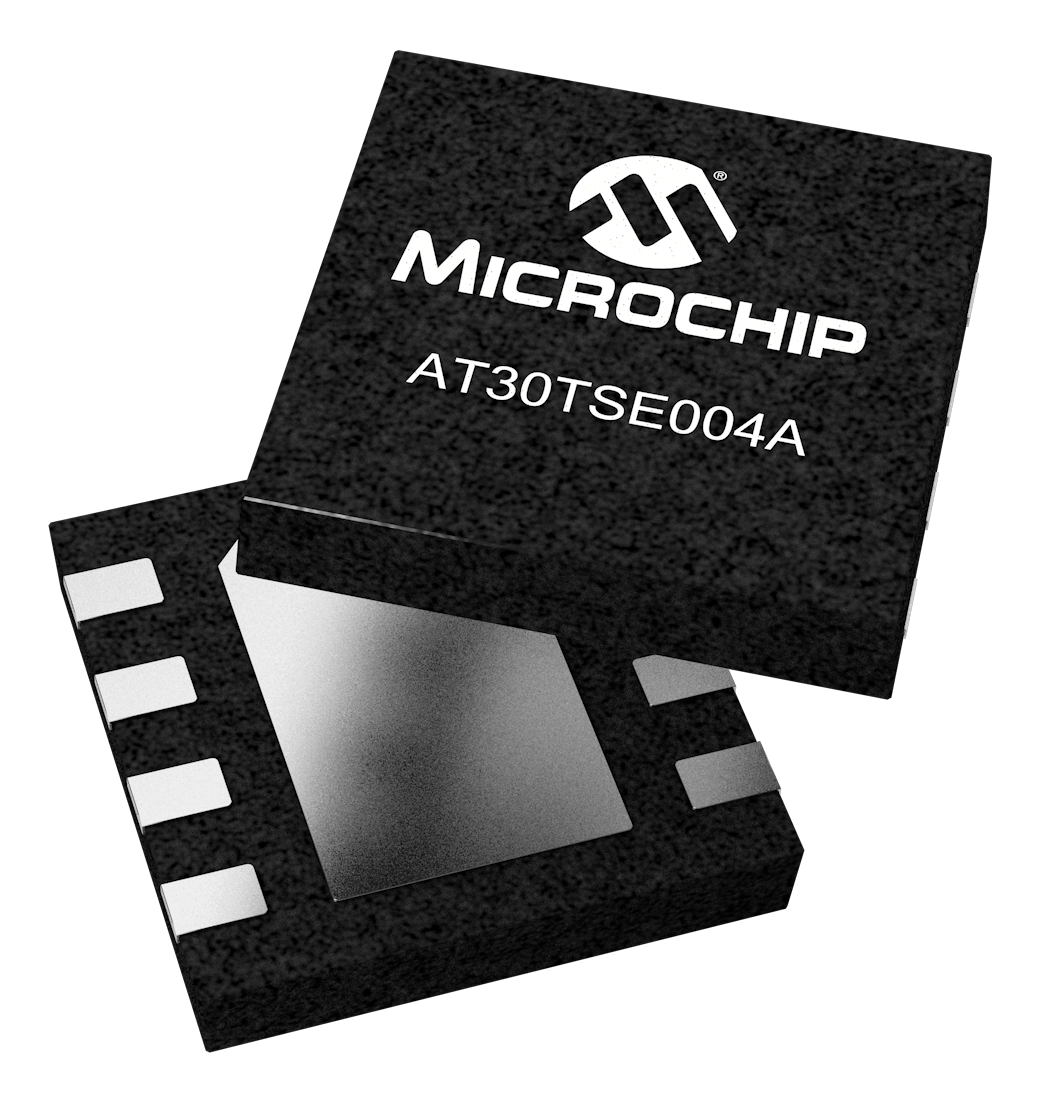

The Microchip AT30TSE004A is a 1.7V rated minimum operating voltage combination Serial EEPROM and temperature sensor device containing 4096-bits of EEPROM organized as 512-bytes of eight bits each. The Serial EEPROM operation is tailored specifically for DRAM memory modules with Serial Presence Detect (SPD).

The integrated temperature sensor converts temperatures from --20°C to +125°C to a digital word and provides a typical accuracy of ±1.0°C over the operating temperature range of +75°C to +95°C The device incorporates flexible user programmable internal registers to configure the temperaturesensor’s performance and response to over and under temperature conditions. The AT30TSE004 supports the industry standard 2-wire I2C Fast-Mode Plus serial interface allowing device communication to operate at up to 1MHz.

  Meets JEDEC Specification-  JC42.4-TSE2004B1 Temperature Sensor with 4 Kbit Serial EEPROM for Serial Presence Detect (SPD)

  1MHz, 2-wire I2C™ Interface

  Specified VDD Range: 1.7V to 3.6V

  Available Package: DFN-8

Temperature Sensor Features

  Temperature-to-Digital Converter (°C)

  Sensor Accuracy (Grade B)

  +75°C to +95°C- ±0.5°C/±2°C (typ./max.)

   +40°C to +125°C- ±1°C/±3°C (typ./max.)

Serial EEPROM Features

  Organized as 2 banks of 256 x 8-bit (2 Kbit x 2)

  Reversible Software Write Protect

  Software Write Protection for each 1 Kbit Block
