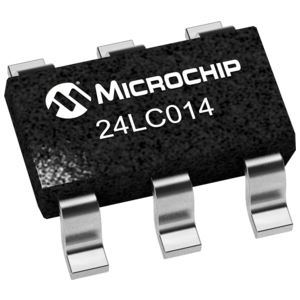

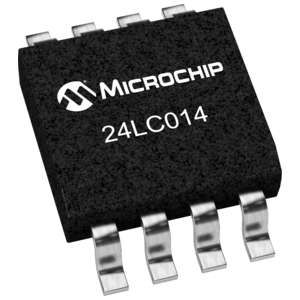

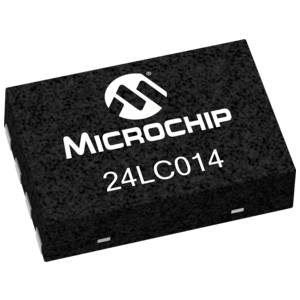

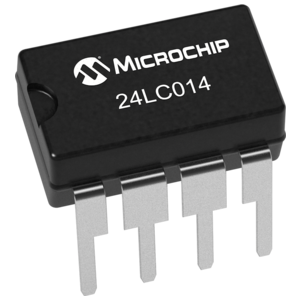

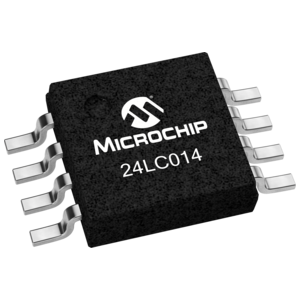

The Microchip Technology Inc. 24LC014 is a 1Kb Serial EEPROM with operation down to 2.5V. The device is organized as a single block of 128 x 8-bit memory with a 2-wire serial interface. Low-current design permits operation with typical standby and active currents of only 1 µA and 1 mA, respectively. The device has a page write capability for up to 16 bytes of data. Functional address lines allow the connection of up to eight 24LC014 devices on the same bus for up to 8 Kbits of contiguous EEPROM memory. The device is available in the standard 8-pin PDIP, 8-pin SOIC (150 mil), TSSOP, 2x3 DFN and TDFN and MSOP packages.

  Single-Supply with Operation Down to 2.5V

  Low-Power CMOS Technology:

  Organized as a Single Block of 128 Bytes(128 x 8)

  Hardware Write Protection for Entire Array

  2-Wire Serial Interface Bus, I2C™ Compatible

  100 kHz and 400 kHz Clock Compatibility

  Page Write Buffer for up to 16 Bytes

  Self-Timed Write Cycle (including auto-erase)

  5 ms max. Write Cycle Time

  Address Lines Allow up to Eight Devices on Bus

  1,000,000 Erase/Write Cycles

  Data Retention > 200 Years
