24FC256

The 24FC256 is a 32K x 8 (256K-bit) Serial Electrically Erasable PROM (EEPROM)

制造商:

产品信息

The Microchip Technology Inc. 24FC256 is a 256Kb (32K x 8) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space. This device is available in the standard 8-pin plastic DIP, SOIC, TSSOP, MSOP and DFN packages.

  Reliable EEPROM Memory

  32K x 8 (256Kbit)

  Self-Timed Erase/Write Cycle

  64-Byte Page Write Buffer

  Page Write Time 5 ms Max.

  Hardware Write-Protect Pin

  Factory Programming Available

  Low Power

  Operating voltage 1.7V to 5.5V

  Read current 400 uA, max.

  Standby current 1 uA, max.

  2-Wire Serial Interface, I2C™ Compatible

  Cascadable up to Eight Devices

  Schmitt Trigger Inputs for Noise Suppression

  Output Slope Control to Eliminate Ground Bounce

  400 kHz and 1MHz Clock Compatible

  ESD Protection >4000V

  Pb-Free and RoHS Compliant

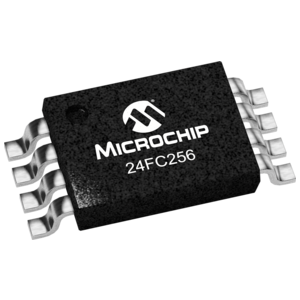

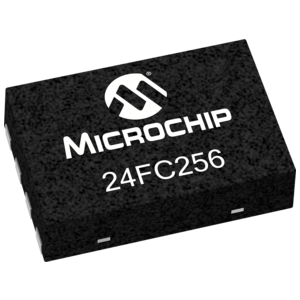

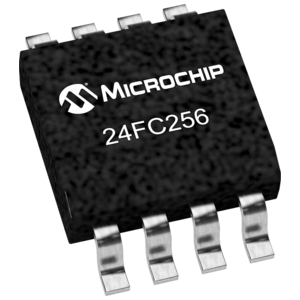

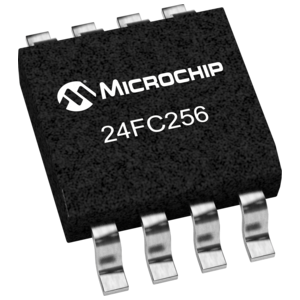

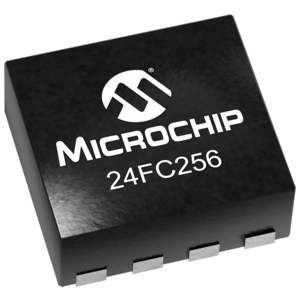

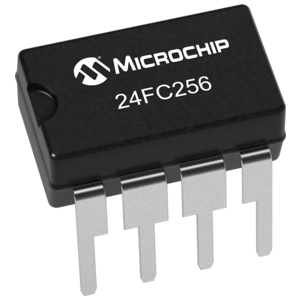

    24FC256封装图
