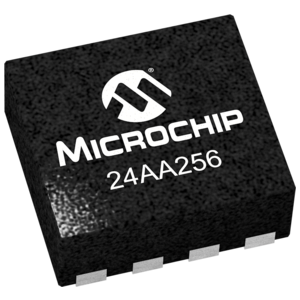

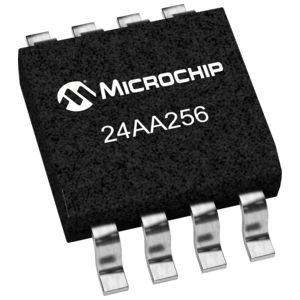

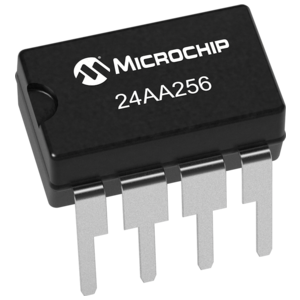

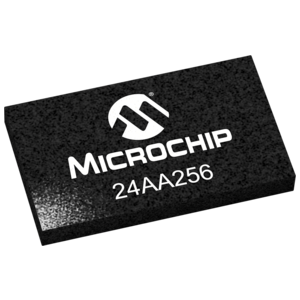

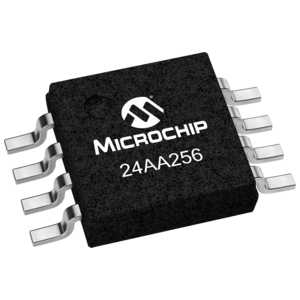

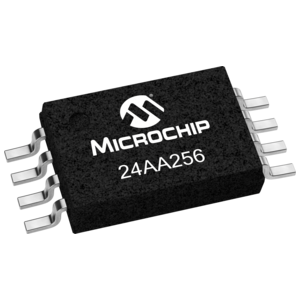

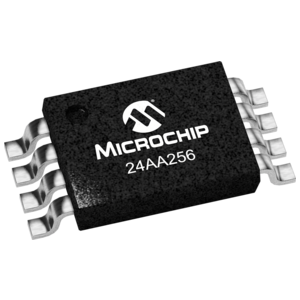

The Microchip Technology Inc. 24AA256 is a 256Kb (32K x 8) Serial Electrically Erasable PROM (EEPROM), capable of operation across a broad voltage range (1.7V to 5.5V). It has been developed for advanced, low-power applications such as personal communications or data acquisition. This device also has a page write capability of up to 64 bytes of data. This device is capable of both random and sequential reads up to the 256K boundary. Functional address lines allow up to eight devices on the same bus, for up to 2 Mbit address space.

  Reliable EEPROM Memory

  32K x 8 (256Kbit)

  64-Byte Page Write Buffer

  Page Write Time 5 ms Max.

  Hardware Write-Protect Pin

  Factory Programming Available

  Low Power

  Operating voltage 1.7V to 5.5V

  Read current 400 uA, max.

  Standby current 1 uA, max.

  2-Wire Serial Interface, I2C™ Compatible

  Cascadable up to Eight Devices

  100 kHz and 400 kHz Clock Compatible

  Pb-Free and RoHS Compliant
