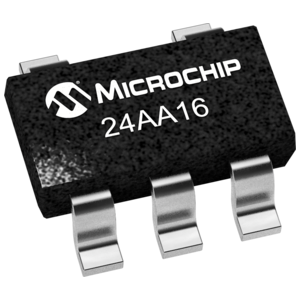

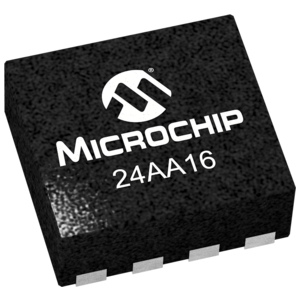

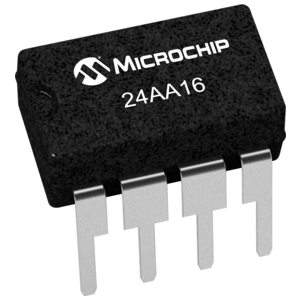

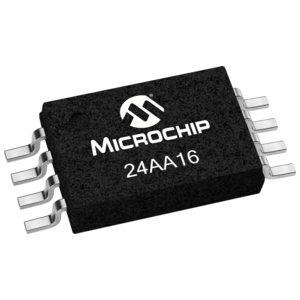

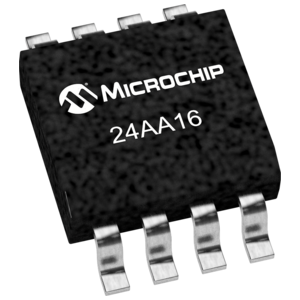

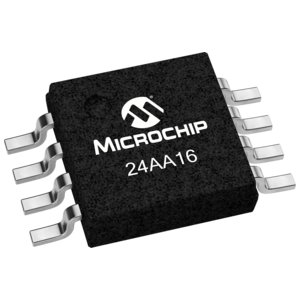

The Microchip Technology Inc. 24AA16 is a 16Kb I2C™ compatible Serial EEPROM. The device is organized as eight blocks of 256 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24AA16 also has a page write capability for up to 16 bytes of data. The 24AA16 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 package.

  Single supply with operation down to 1.7V

  Low-power CMOS technology

  2-wire serial interface, I2C™ compatible

  Schmitt Trigger inputs for noise suppression

  Output slope control to eliminate ground bounce

  100 kHz (2.5V) and 400 kHz clock compatibility

  Page write time 5 ms max.

  More than 1 million erase/write cycles

  Data retention > 200 years
