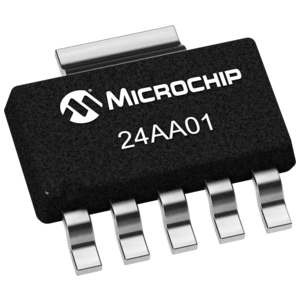

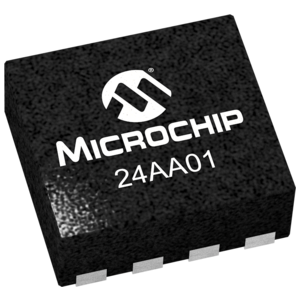

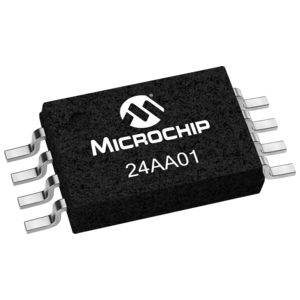

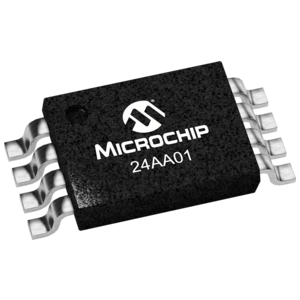

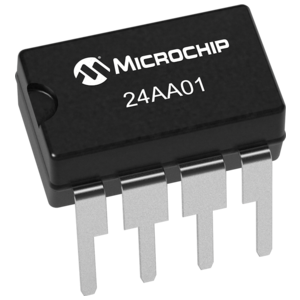

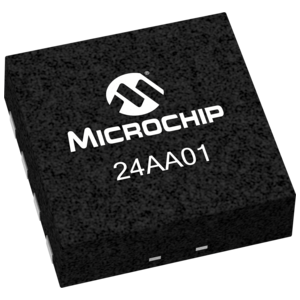

The Microchip Technology Inc. 24AA01/24LC01B is a 1Kb Serial EEPROM. The device is organized as one block of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V with standby and active currents of only 1 µA and 1 mA, respectively. The 24XX01 also has a page write capability for up to 8 bytes of data. The 24XX01 is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5-lead SOT-23 package.

  Single supply with operation down to 1.7V for 24AAXX devices, 2.5V for 24LCXX devices

  Low-power CMOS technology - Read current 1 mA, typical - Standby current 1 mA, typical (I-temp)

  2-wire serial interface, I2C™ compatible

  Schmitt Trigger inputs for noise suppression

  Output slope control to eliminate ground bounce

  100 kHz and 400 kHz compatibility

  Page write time 3 ms, typical

  More than 1 million erase/write cycles

  Data retention >200 years

  Factory programmable available
